FJD Trion O1 Urban 3D Modeling
Model: O1
A five-camera aerial oblique imaging payload (1 nadir + 4 oblique, 150MP each) for wide-area 3D city modelling from a drone or aircraft.
Every FJD Trion product is quoted individually to reflect configuration, accessories and support requirements. Tell us about your project and we'll respond with pricing, lead time and (where useful) a demonstration.
Downloads
Datasheets and manuals for this product are being added to the catalogue — request a quote and we'll send the latest documentation directly.

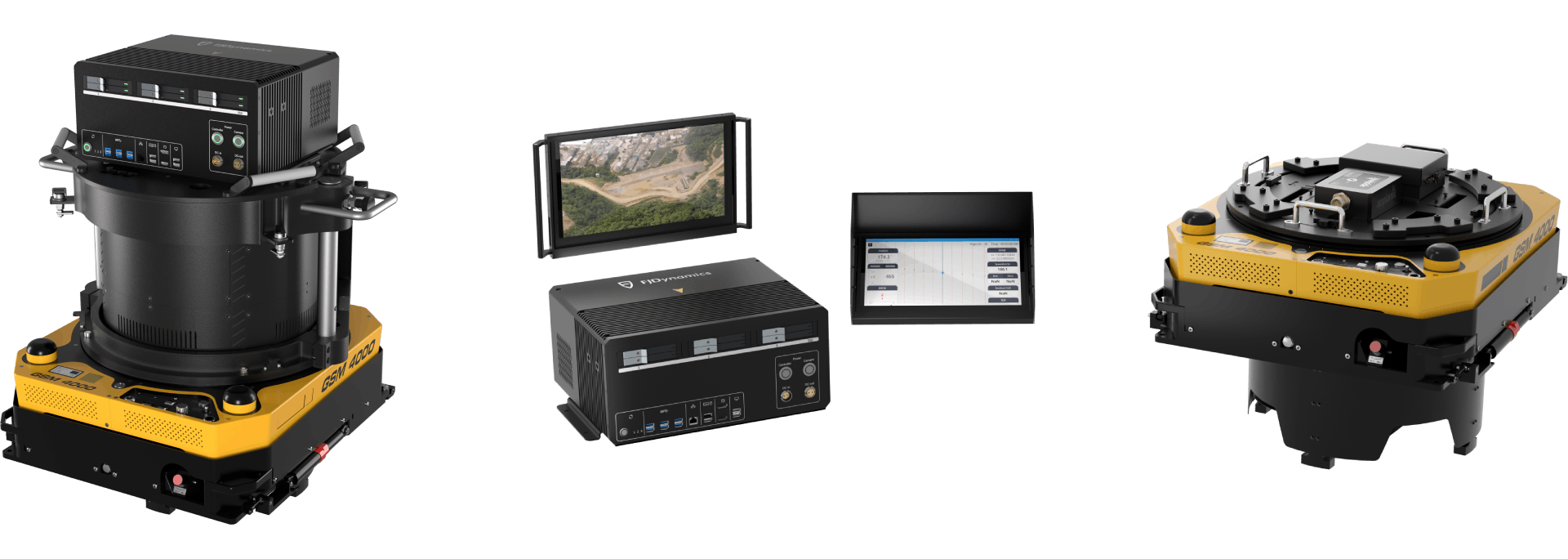

The O1 is a large-format aerial photogrammetry rig: one 150MP nadir camera plus four 150MP oblique cameras (33°x25° FOV, 90mm focal length) capture a full 3D city model in a single pass, feeding urban planning, pipeline routing, 2D mapping and DSM/DTM production at scale. An integrated Applanix IMU-46 and 50Hz Trimble BD992 GNSS keep every frame precisely positioned, and five 2TB SSDs (around 3 hours of recording) handle the resulting data volumes. At a typical flying height of 665m AGL it resolves down to roughly 5cm ground sample distance. At 48-66kg depending on configuration, this is a serious aerial payload aimed at survey firms and local authorities running city-scale digital twin or urban-planning projects rather than single-site work.
Technical specification
| Ground sample distance | ~5cm GSD @665m AGL |
|---|
| Nadir camera | 1x150MP, 50mm focal length, 56.21°x43.65° FOV |
|---|---|
| Oblique cameras | 4x150MP, 90mm focal length, 33.05°x25.09° FOV |
| Sensor | Back-illuminated CMOS, 3.76µm pixel, 83dB dynamic range, 14-bit ADC |
| Frame rate / shutter | Max 0.5s (2fps); mechanical central shutter up to 1/2500s (nadir), 500,000-cycle rated |
| Storage | 5x2TB SSD (~3 hours recording) |
|---|---|
| Controller | 64-bit Win10, 32GB RAM, 120GB SSD, USB3.0/SATA3.0 |
| Power | 440W avg / 570W peak @28VDC |
| Weight / dimensions | 48kg (without lifter) / 66kg (with lifter); 663mm height x 400mm diameter |
| IMU / GNSS | Applanix IMU-46; integrated Trimble BD992 GNSS @50Hz |
|---|
