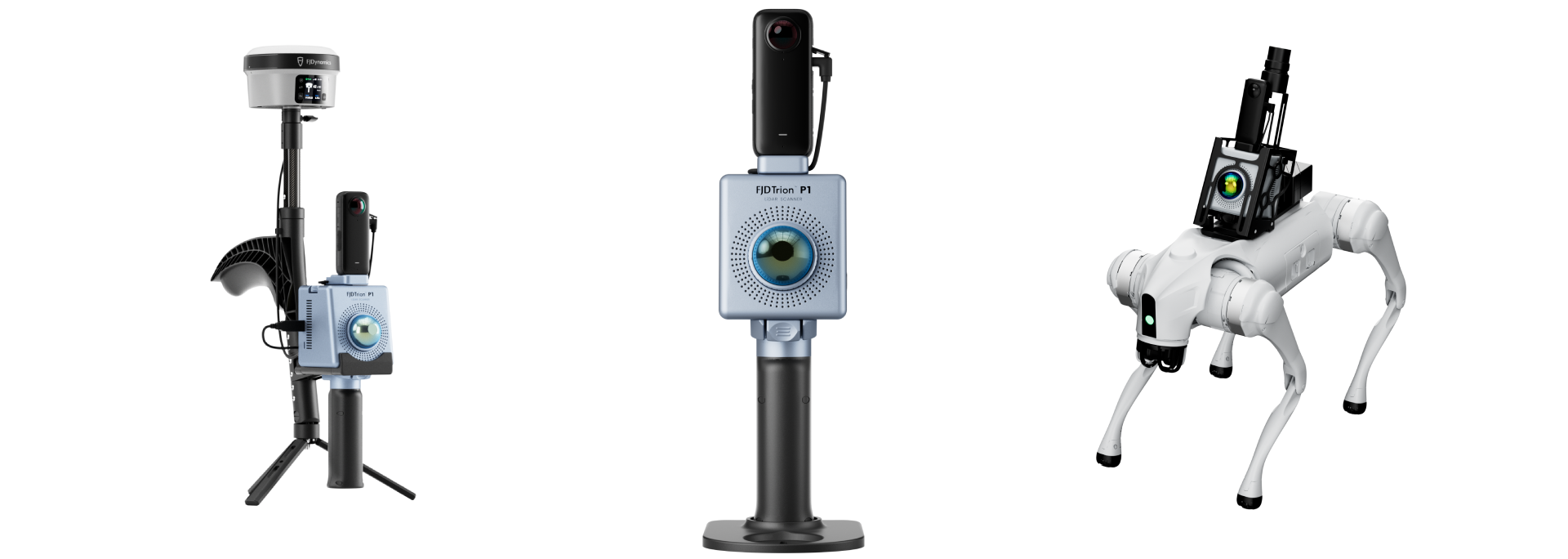

FJD Trion P1 LiDAR Scanner
Model: P1
A go-anywhere handheld scanner with onboard GNSS, real-time processing and up to 512GB of internal storage for full-day site work.
Every FJD Trion product is quoted individually to reflect configuration, accessories and support requirements. Tell us about your project and we'll respond with pricing, lead time and (where useful) a demonstration.
Downloads
Datasheets and manuals for this product are being added to the catalogue — request a quote and we'll send the latest documentation directly.
The P1 steps up from entry-level scanning with a 360°x59° LiDAR head rated to 70m range, built-in multi-constellation GNSS for RTK/PPK-accurate positioning, and 512GB of onboard memory so operators are not tethered to a laptop between setups. Real-time point cloud preview and processing keeps quality checks on site rather than back at the office, and Continue Scanning / Hyperdense+ modes make it straightforward to fill in gaps or densify tricky areas without re-running a whole capture. It also accepts an external Insta360 X3 camera for full 360° video capture alongside the point cloud. FJD's own customer data shows the P1 handling high-rise and demolition scan-to-BIM work at pace — a solid mid-tier choice for AEC and survey teams who need dependable, all-day handheld scanning with integrated positioning.
Technical specification
| Runtime | ~2 hours (room temp, scanner only); 10.8V/3A, 12W, Type-C charge |
|---|
| External camera support | Insta360 X3, 5760x2880@30fps, 360° FOV |
|---|
| Data / network | USB 3.0 data; Wi-Fi 2.4GHz |
|---|
| Constellations | BDS, GPS, GLONASS, Galileo, QZSS |
|---|---|
| RTK accuracy | H: 8mm+1ppm, V: 15mm+1ppm RMS; 10Hz; PPK supported |
| Relative accuracy | Up to 2 cm (experimental) |
|---|---|
| Range | 40 m @10% reflectivity; 70 m @80% reflectivity |
| Wavelength / eye safety | 905 nm, Class I |
| Field of view | 360° x 59° |
| Point rate | 200,000 pts/s; real-time processing and preview |
| Scan modes | Continue Scanning and Hyperdense+ supported |
| Weight | 1 kg (excl. camera/baseplate) |
|---|---|
| Dimensions | 160 x 120 x 270 mm (excl. camera) |
| Storage | 512 GB internal memory |
