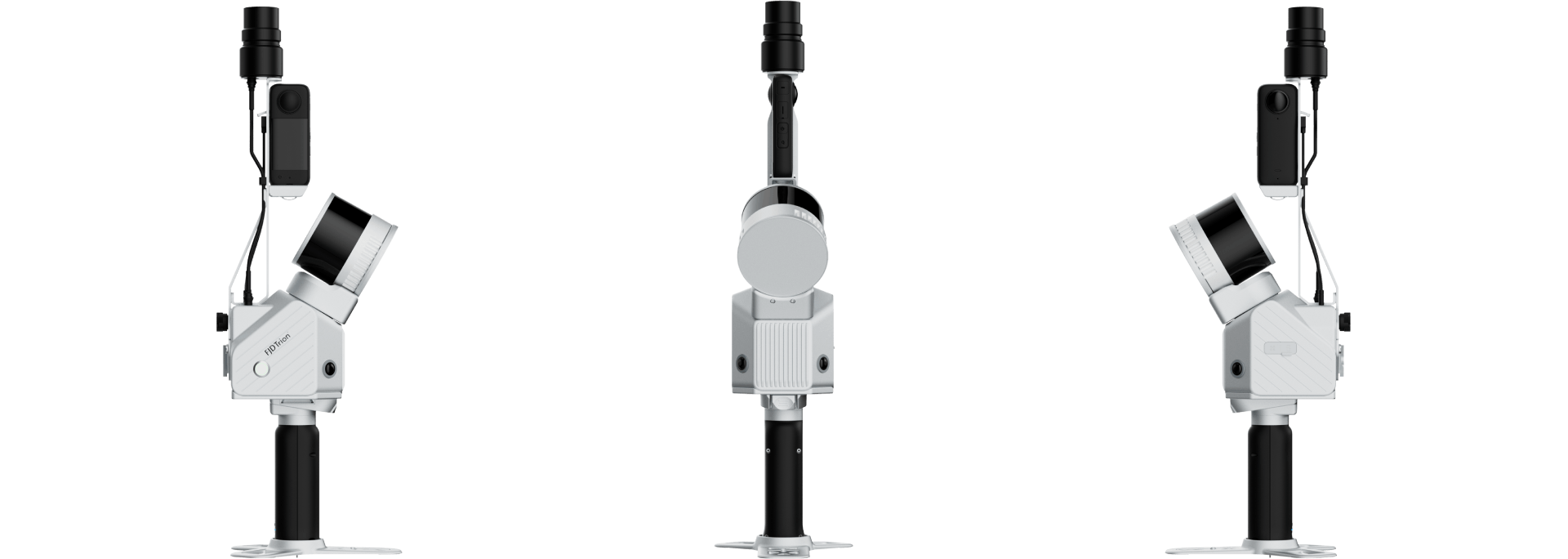

FJD Trion S2 Series LiDAR Scanner
Model: S2
The flagship outdoor surveying scanner in the range, available in Standard/PRO/MAX tiers up to 300m range and 640,000 points/second.
Every FJD Trion product is quoted individually to reflect configuration, accessories and support requirements. Tell us about your project and we'll respond with pricing, lead time and (where useful) a demonstration.
Downloads
Datasheets and manuals for this product are being added to the catalogue — request a quote and we'll send the latest documentation directly.

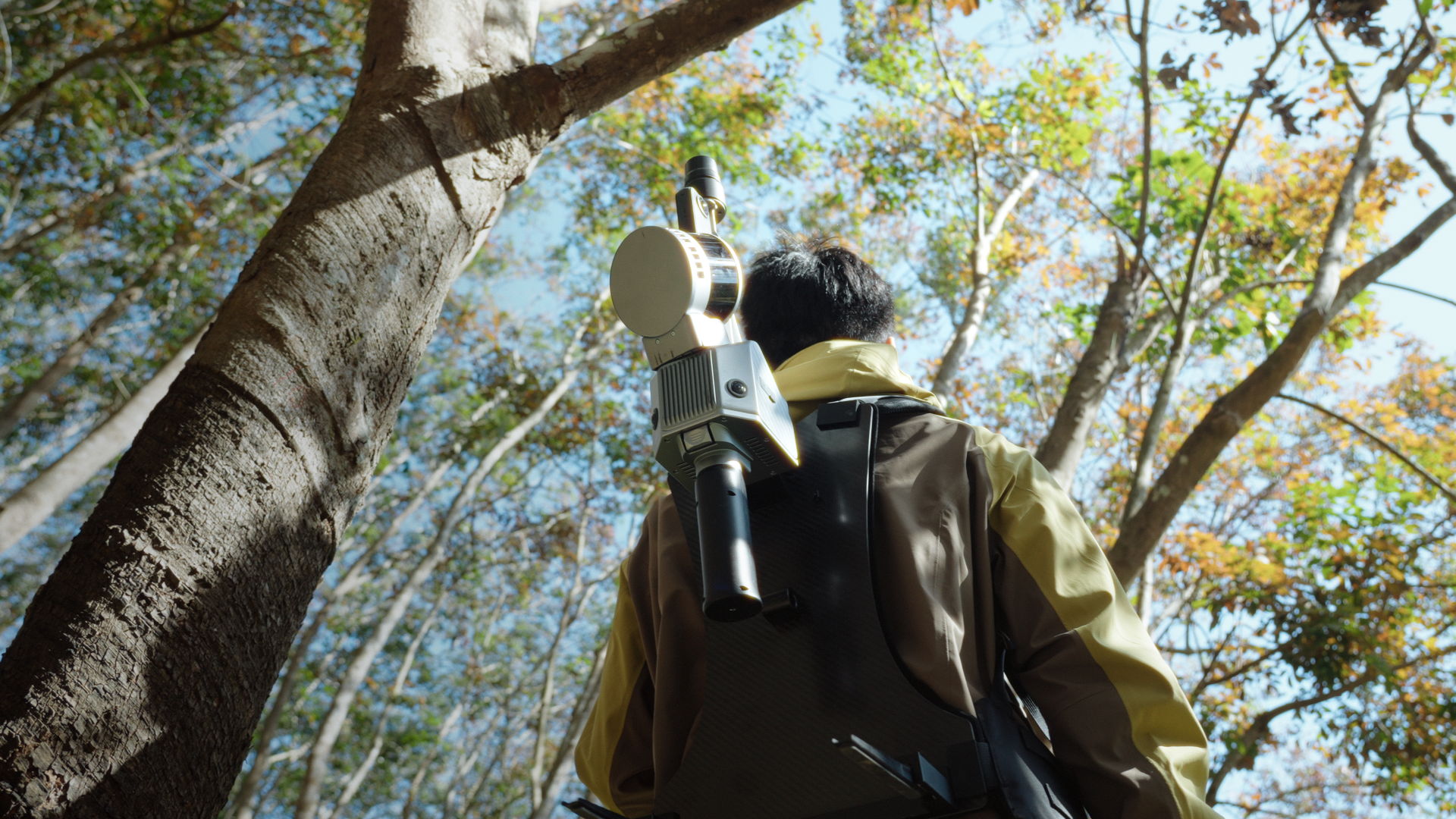

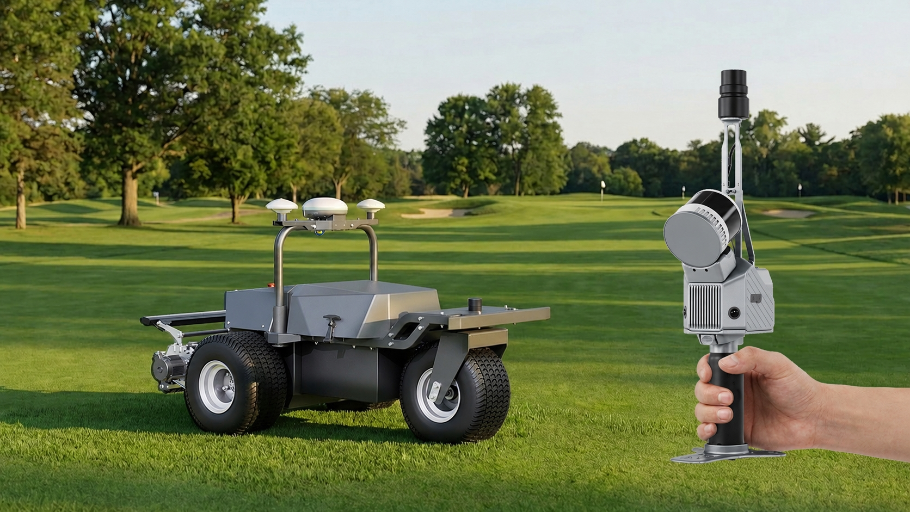

The S2 series is FJD Trion's top-tier outdoor scanner, combining VIO and SLAM tracking across more than 8,000 supported coordinate systems so georeferenced output needs no manual coordinate conversion. The Standard tier runs a 16-channel head to 120m range at 320,000 points/second; PRO steps up to 32 channels at 640,000 points/second within the same 120m range; MAX extends range to 300m at the same 32-channel, 640,000 points/second rate. All three share sub-centimetre relative accuracy (around 3cm absolute) and accept the same accessory ecosystem — stabilising vest, drone mount, vehicle mount and robot-dog mount — making the S2 the scanner of choice for large infrastructure, mining, forestry and topographic survey work where range and throughput matter most. It is the model DTA recommends leading with for major UK infrastructure and utility survey tenders.
Technical specification
| Point cloud accuracy | Relative ≤1 cm, Absolute 3 cm |
|---|
| Runtime / power | 3 hours (2 batteries); 25W power consumption; 10.8V/3A supply |
|---|
| Built-in cameras | 2x12MP, 200° FOV, visual SLAM |
|---|
| Coordinate systems | 8,000+ supported, no manual conversion needed |
|---|
| RTK accuracy | H: 8mm+1ppm, V: 15mm+1ppm RMS; PPK supported |
|---|
| Range (Standard) | 120 m @80% / 80 m @10% reflectivity; 16 channels; 320,000 pts/s |
|---|---|
| Range (PRO) | 120 m @80% / 80 m @10% reflectivity; 32 channels; 640,000 pts/s |
| Range (MAX) | 300 m @80% / 80 m @10% reflectivity; 32 channels; 640,000 pts/s |
| Field of view | 360° x 270°; Class I eye safety (905 nm) |
| Weight | 1.8 kg (excl. battery/ext. camera/GNSS module) |
|---|---|
| Dimensions | 107 x 118 x 398 mm (incl. base+battery); base/handle 180g |
| Storage | 512 GB SSD (1 TB expandable) |
| Operating temperature | -20°C to 50°C |
