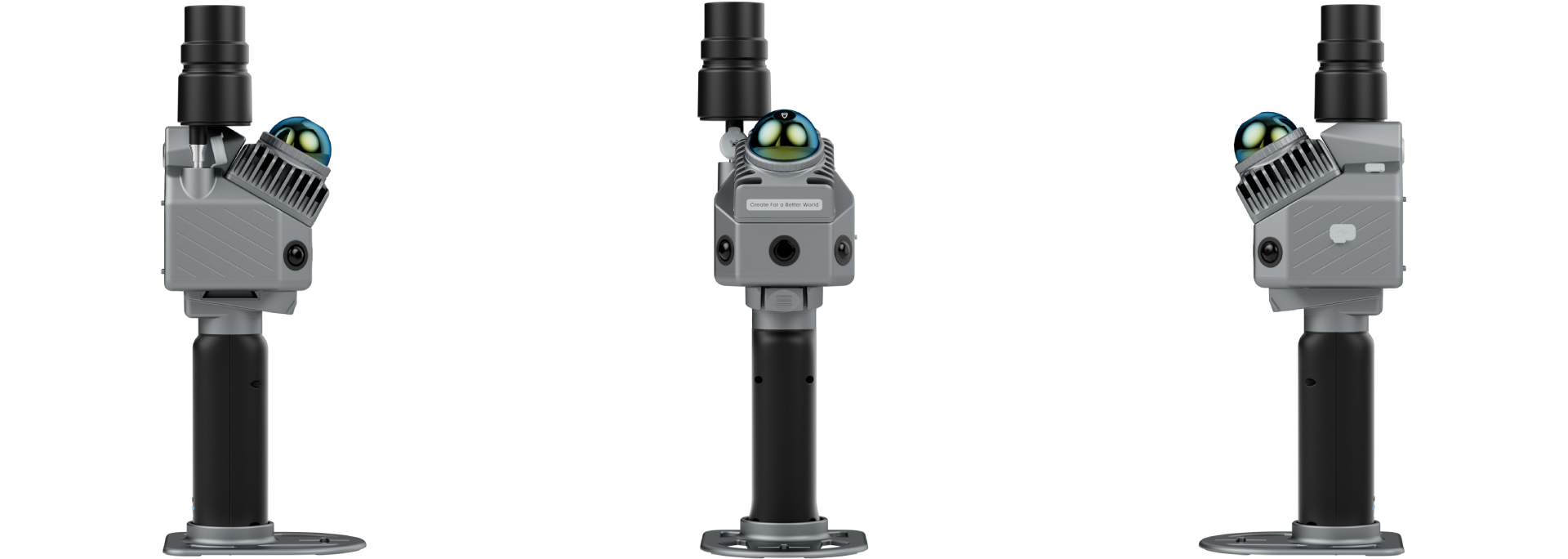

FJD Trion P2 LiDAR Scanner
Model: P2
The successor to the P1, adding dual built-in cameras for visual SLAM and true-colour point clouds, plus support for Insta360 X3/X5 external video.
Every FJD Trion product is quoted individually to reflect configuration, accessories and support requirements. Tell us about your project and we'll respond with pricing, lead time and (where useful) a demonstration.
Downloads
Datasheets and manuals for this product are being added to the catalogue — request a quote and we'll send the latest documentation directly.
The P2 keeps the P1's 70m-range, 200,000 points/second LiDAR core and onboard GNSS, then adds a front and dual side camera array (2MP + 2x48MP) for visual SLAM tracking and colourised point clouds straight out of the scanner. IP54-rated and built for a 700g-1.5kg working weight depending on accessories, it exports directly to .las/.ply/.pts/.e57 over Wi-Fi, USB-C or removable storage, with up to 1TB expandable capacity. Dual-battery hot-swap and simultaneous charging keep it running through a full working day. It is the natural choice for AEC and survey teams who want the P1's all-day reliability with better colour accuracy and richer external-camera support for documentation and virtual tours.
Technical specification
| Real-time point cloud | Relative 2 cm, Absolute 5 cm |
|---|---|
| Post-processed | Relative 1 cm, Absolute 3 cm |
| Runtime | 4 h (with GNSS, no ext. camera); 3 h (with GNSS + ext. camera) |
|---|---|
| Charging | 67W fast charger; simultaneous dual-battery charging |
| Built-in cameras | Front 2MP @70° FOV; Side 2x48MP @280°x149° FOV; visual SLAM |
|---|---|
| External camera support | Insta360 X3 / X5 (up to 8K@30fps on X5) |
| RTK accuracy | H: 8mm+1ppm, V: 15mm+1ppm RMS; 10Hz |
|---|
| Speed | 200,000 pts/s |
|---|---|
| Field of view | 360° x 59° |
| Range | 40 m @10% reflectivity; 70 m @80% reflectivity |
| Scan modes | Continue Scanning and Hyperdense+ supported |
| Weight | 700 g (bare); 1200 g (+battery+GNSS); 1500 g (+battery+GNSS+ext. camera) |
|---|---|
| Dimensions | 110 x 106 x 280 mm |
| Storage | 512 GB SSD (1 TB expandable); IP54 |
| Operating temperature | -20°C to 50°C |
