FJD Trion V4e LiDAR
Model: V4e LiDAR
The most affordable route into mobile 3D scanning — a lightweight handheld SLAM LiDAR built for first-time users and fast interior capture.
Every FJD Trion product is quoted individually to reflect configuration, accessories and support requirements. Tell us about your project and we'll respond with pricing, lead time and (where useful) a demonstration.
Downloads
Datasheets and manuals for this product are being added to the catalogue — request a quote and we'll send the latest documentation directly.

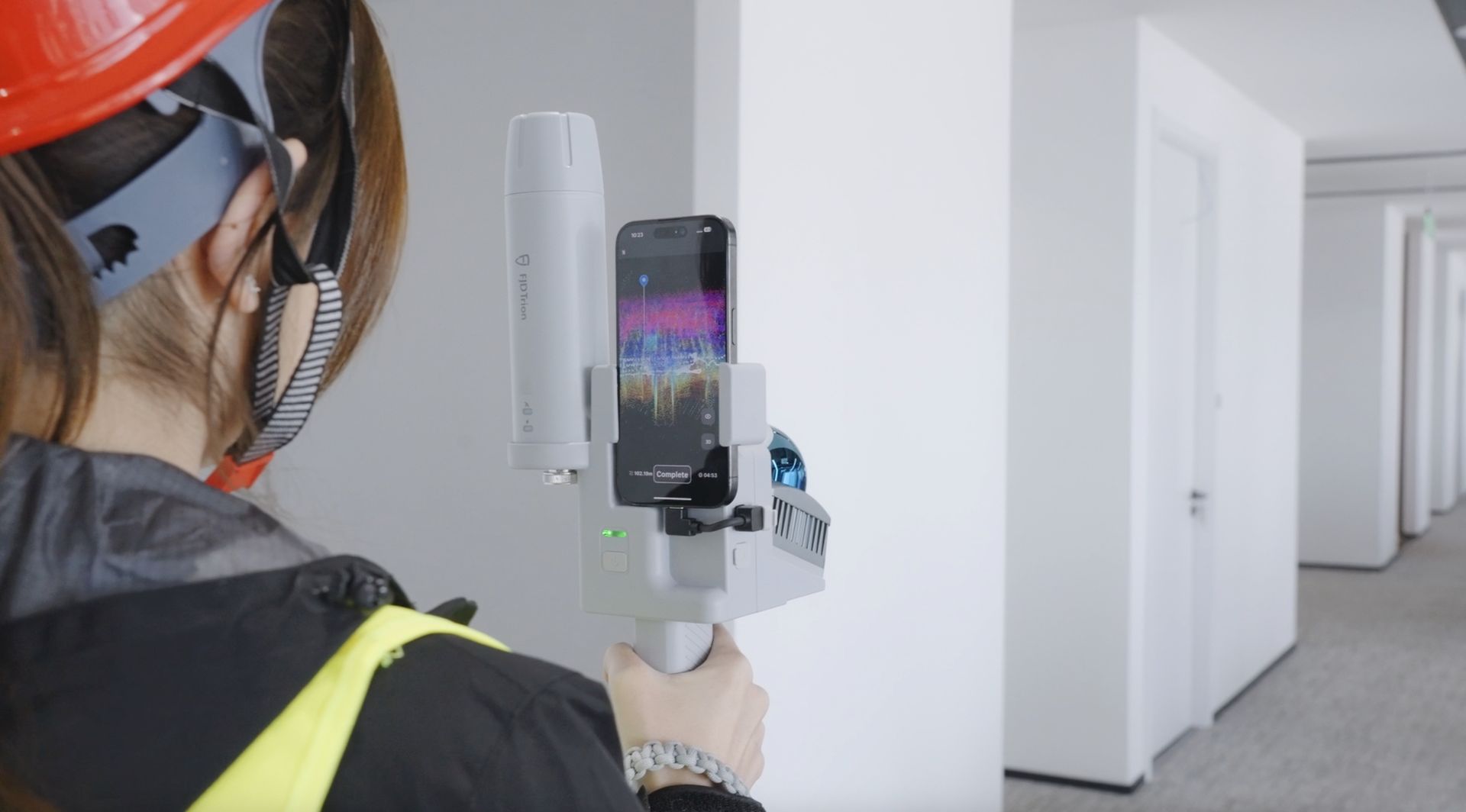

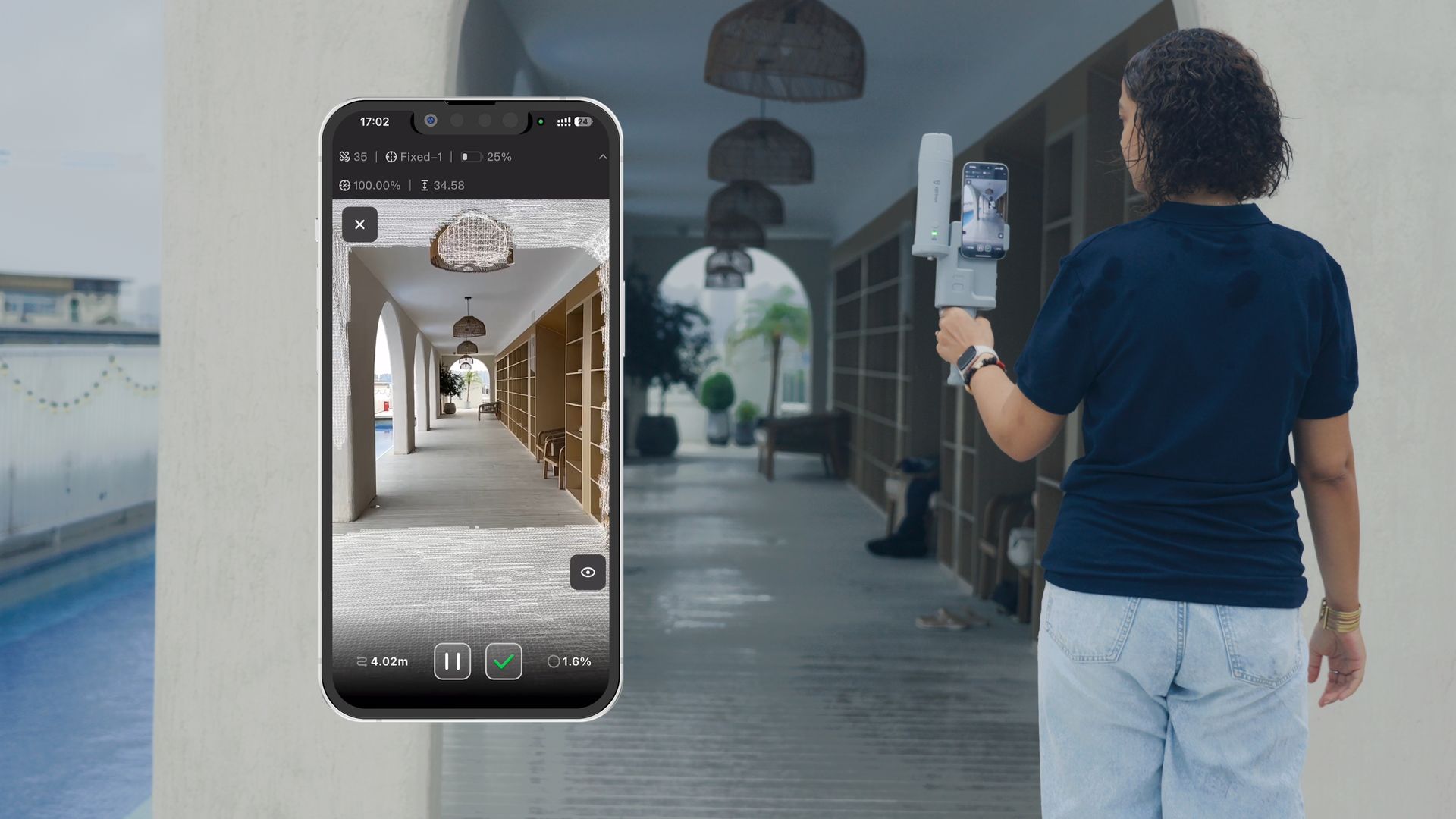

The V4e LiDAR is FJD Trion's entry point into handheld reality capture: a compact, sub-1kg-class scanner designed to get new teams producing usable point clouds within minutes of unboxing. Real-time preview on a paired mobile device lets an operator confirm coverage while still on site, and the same walk-and-scan workflow feeds straight into FJD Trion Model or Model Web for processing. Pair it with a V4e Pro GNSS receiver (the "V4e Combo") to georeference outdoor scans, or run it standalone for interior surveys, real estate walkthroughs and small-site capture where speed of deployment matters more than long-range accuracy. For UK buyers moving from tape-and-total-station workflows to laser scanning for the first time, it is the lowest-friction and lowest-cost way to start.
Technical specification
| Post-processed accuracy | Relative 1 cm, Absolute 3 cm |
|---|
| Capacity | 3.6V / 6,700 mAh Li-ion |
|---|---|
| Runtime / charge time | ≥5 hours runtime; ≤3 hours charge; <5W consumption |
| Ports | USB 3.0 data, USB 2.0 Type-C charge (OTA firmware updates) |
|---|
| Laser wavelength | 905 nm ±5 nm (Class 1 eye safety, IEC 60825-1:2014) |
|---|---|
| Detection range | 0.05-50 m @90% reflectivity; 0.1-25 m @10% reflectivity |
| Field of view | Horizontal 360°, Vertical -10° to 60° |
| Sampling rate | >200 kHz; 154,600 pts/s point cloud output @70° vertical FOV |
| Weight | ~890 g |
|---|---|
| Dimensions | 137 x 155 x 250 mm; 5/8" internal thread mount |
| Operating temperature | -10°C to 60°C (charging 0-45°C) |
