FJD Trion N10 CORS System

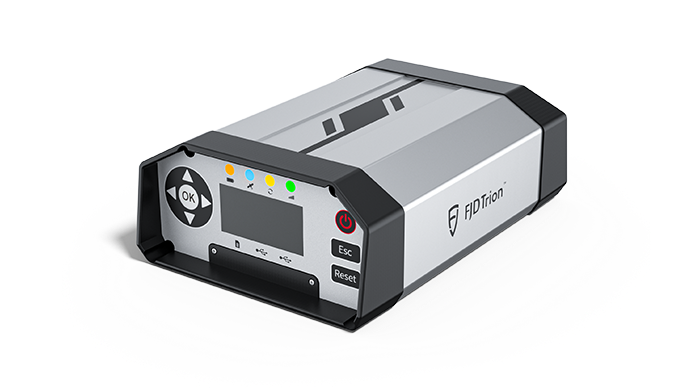

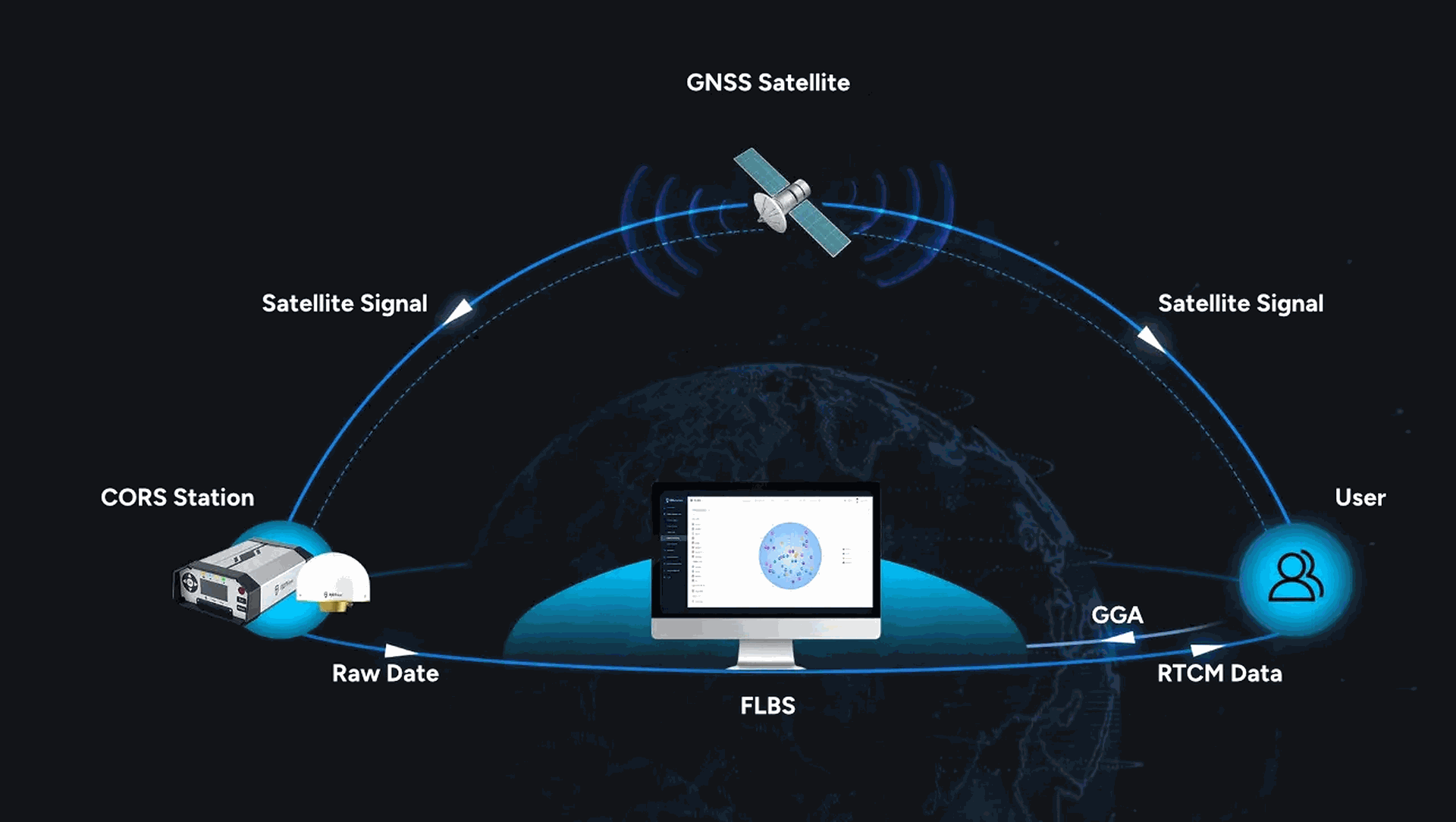

The N10 is designed to sit as a permanent or semi-permanent reference station rather than a field rover: a 1408-channel receiver delivering 0.8cm+1ppm horizontal / 1.5cm+1ppm vertical RTK accuracy, with static differential processing down to 2.5mm+1ppm horizontal. It supports NMEA-0183 and RTCM 2.x/3.x correction streams over 4G, Wi-Fi (hotspot or client) or wired Ethernet, with a wide range of physical I/O (LEMO, RJ45, DB9, TNC, SMA) covering PPS output and external event triggers for integration into wider monitoring or timing systems. A 22,000mAh battery gives more than 24 hours of runtime on internal power alone, with DC or AC mains input for permanent installs. For organisations running multiple survey crews or a private CORS network across a region, the N10 removes reliance on third-party correction subscriptions.
