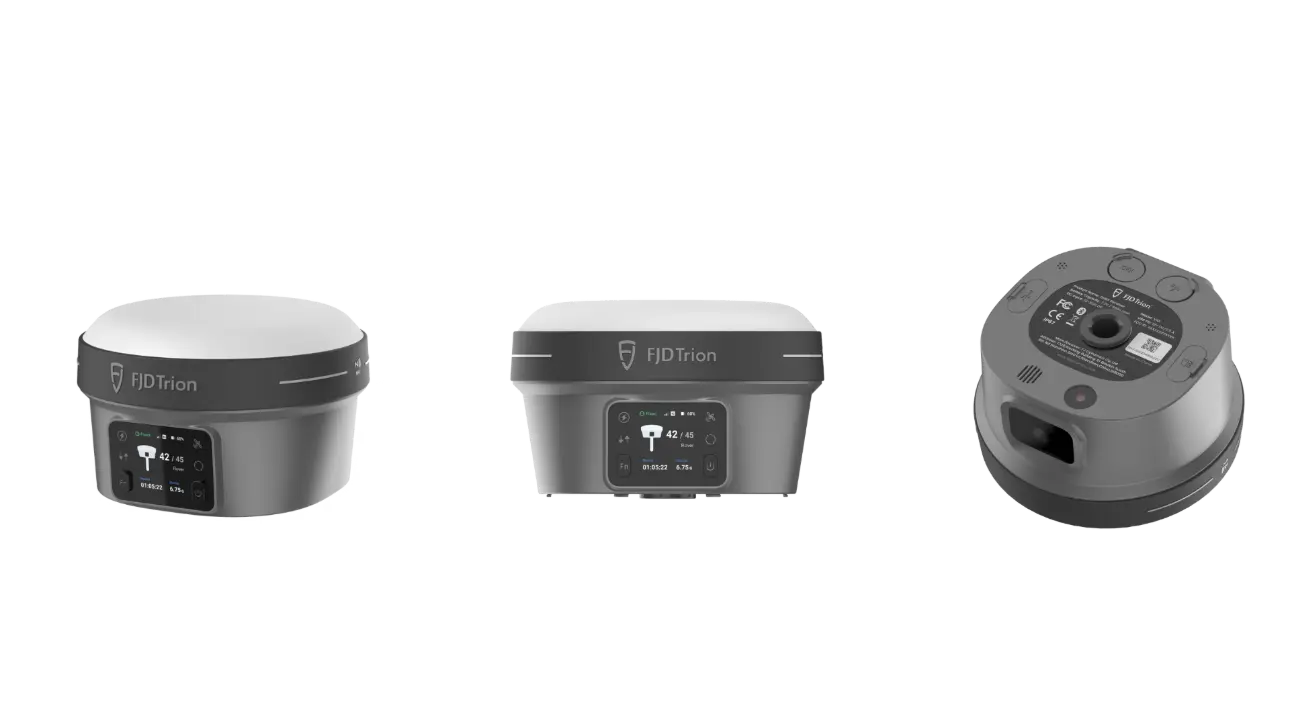

FJD Trion V10i RTK System
Model: V10i
A visual-positioning RTK rover with a low-light global-shutter camera, capable of locating points via photogrammetry as well as GNSS.
Every FJD Trion product is quoted individually to reflect configuration, accessories and support requirements. Tell us about your project and we'll respond with pricing, lead time and (where useful) a demonstration.
Downloads
Datasheets and manuals for this product are being added to the catalogue — request a quote and we'll send the latest documentation directly.
The V10i shares the V10a's rugged IP68 chassis, 1408-channel GNSS engine, UHF radio and 8mm+1ppm/15mm+1ppm RTK accuracy, but swaps in a starlight-grade global-shutter downward camera aimed at low-light visual positioning and short image-group photogrammetry captures (up to roughly 30 seconds/30MB per group). Visual survey accuracy runs to around 3cm over a 2-15m range, giving crews a fallback positioning method under tree canopy, near structures, or wherever GNSS signal alone is marginal. Bluetooth 5.2 connectivity and the same 4,900mAh battery/30W PD charging round out a rover built for teams working mixed open-sky and obstructed environments.
Technical specification
| RTK accuracy | H: 8mm+1ppm, V: 15mm+1ppm RMS (same core as V10a) |
|---|---|
| Visual survey accuracy | ~3 cm (range 2-15 m); image group capture up to ~30s / ~30MB |
| Capacity | 4,900 mAh; 30W PD fast charge |
|---|
| Visual positioning camera | Forward 2MP / Downward 5MP, starlight-grade global shutter for low-light positioning |
|---|
| Radio / network | Same UHF radio/positioning-rate/tilt as V10a; Bluetooth 5.2 |
|---|
| IP rating | IP68 |
|---|
