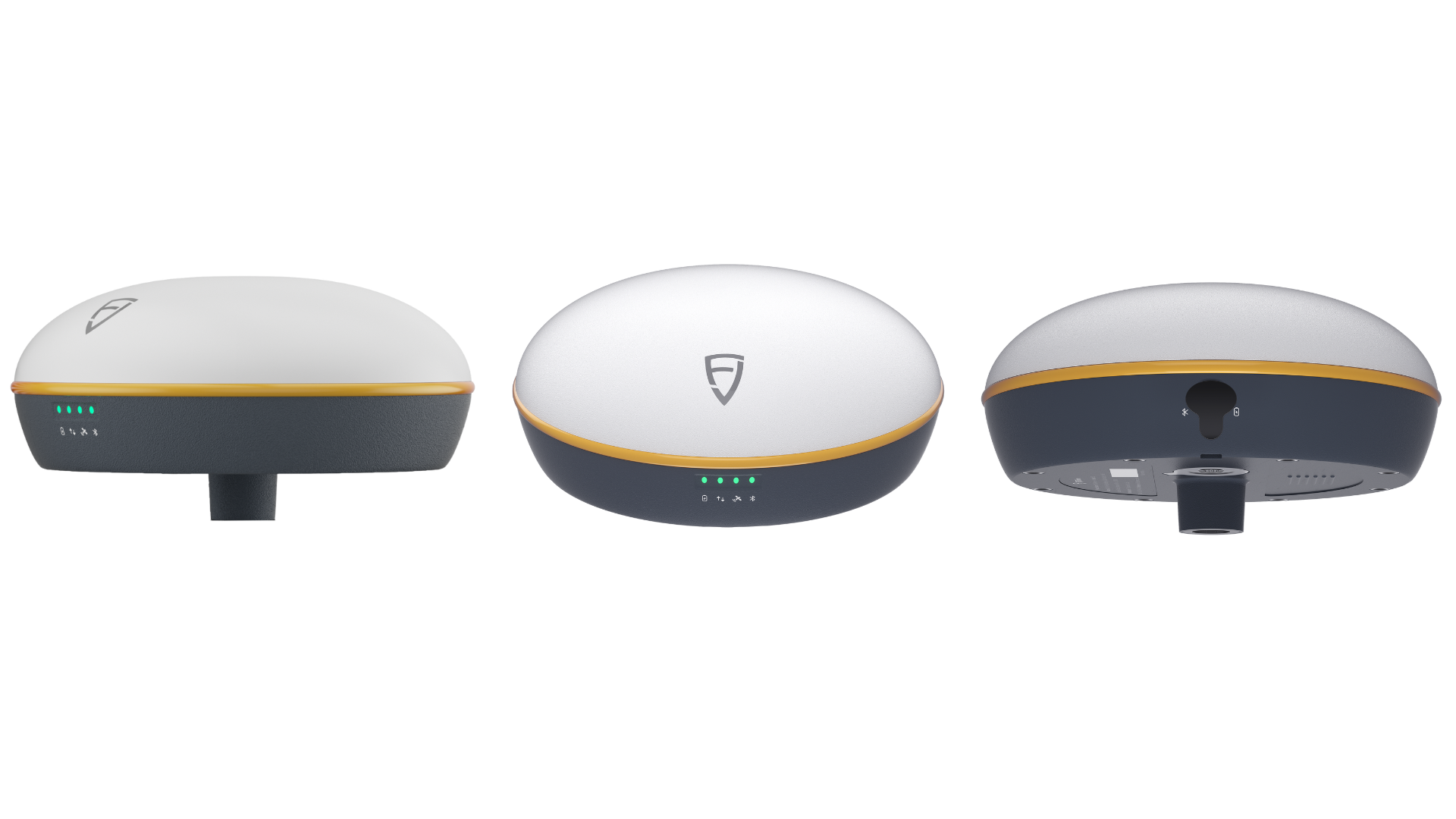

FJD Trion V1 Base Station
Model: V1 Base
The fixed-point counterpart to the V1t rover, providing stable RTK corrections to any number of rovers on site.
Every FJD Trion product is quoted individually to reflect configuration, accessories and support requirements. Tell us about your project and we'll respond with pricing, lead time and (where useful) a demonstration.
Downloads
Datasheets and manuals for this product are being added to the catalogue — request a quote and we'll send the latest documentation directly.
Built on the same rugged IP67 hardware platform as the V1t (162x86mm, 1070g, 32GB storage, 6,500mAh battery good for around 10 hours as a base), the V1 Base Station is set up over a known or arbitrary point to broadcast RTK correction data to rovers working across the site. It shares the same horizontal/vertical accuracy figures as the V1t (around 8mm+1ppm / 15mm+1ppm RMS) and the same Type-C plus 9-32V DC aviation-plug charging options, so crews running a V1t rover can standardise spares, chargers and accessories across both roles. A straightforward, dependable base-station choice for teams setting up their own local RTK network rather than relying solely on a subscription correction service.
Technical specification
| RTK accuracy | H ±(8mm+1ppm), V ±(15mm+1ppm) RMS |
|---|
| Capacity / runtime | 6,500 mAh; ~10 hours as base station |
|---|---|
| Charging | Type-C; 9-32V DC aviation-plug support |
| Size / weight | 162 x 86 mm; 1070 g; IP67 |
|---|---|
| Storage | 32 GB memory |
