FJD Trion V4e Pro
Model: V4e Pro
A pole-free handheld GNSS receiver with an integrated laser rangefinder for hitting stakeout points you cannot physically stand on.
Every FJD Trion product is quoted individually to reflect configuration, accessories and support requirements. Tell us about your project and we'll respond with pricing, lead time and (where useful) a demonstration.
Downloads
Datasheets and manuals for this product are being added to the catalogue — request a quote and we'll send the latest documentation directly.

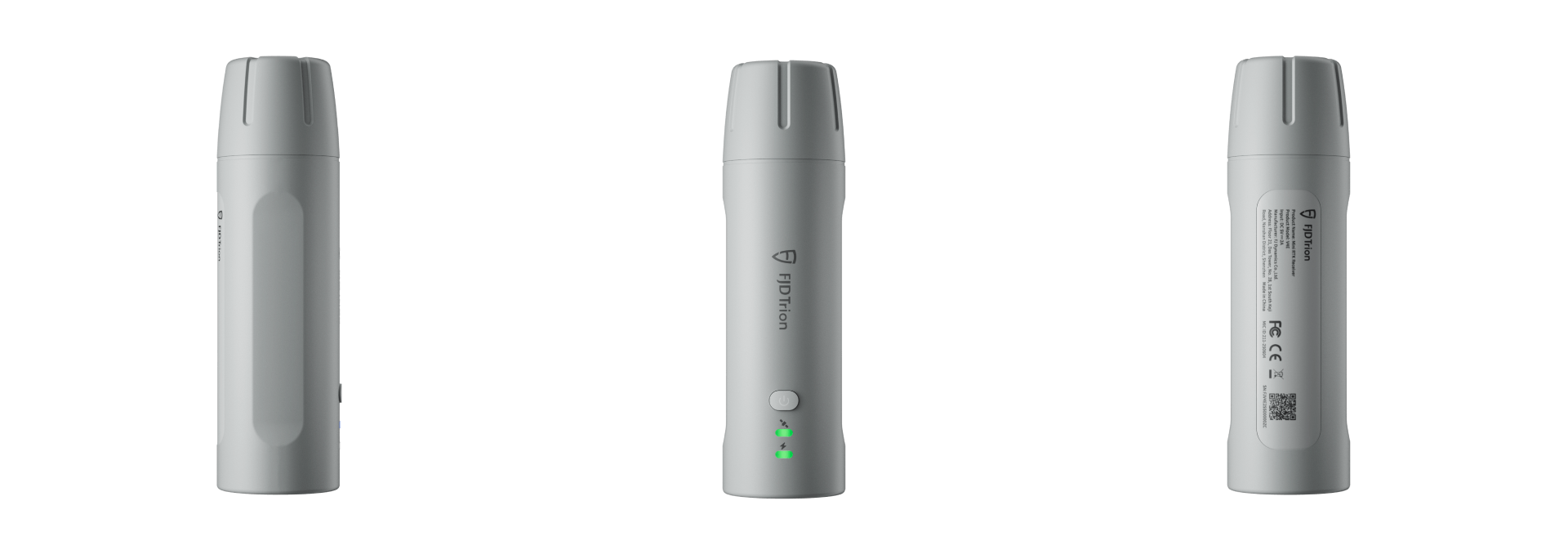

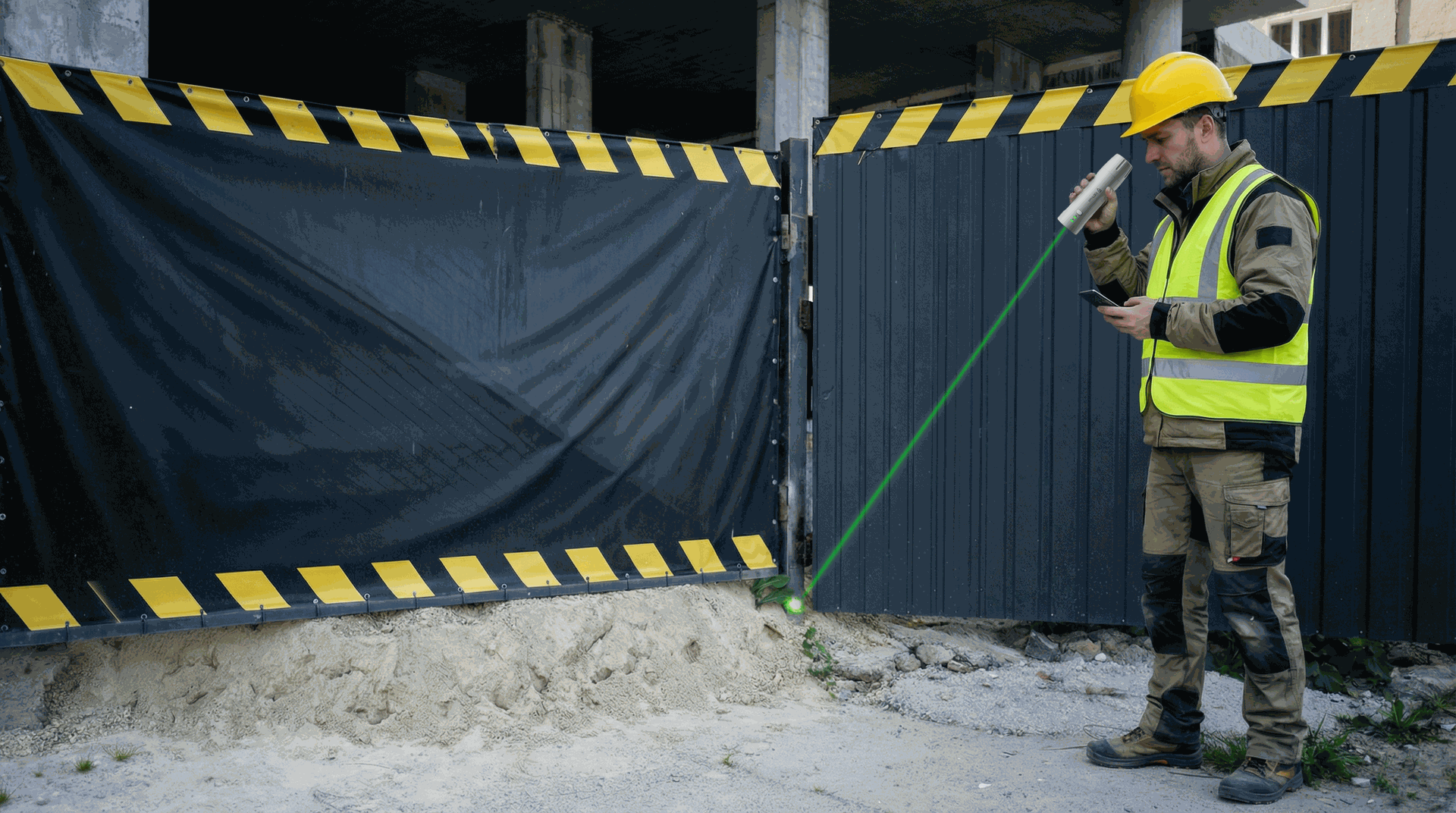

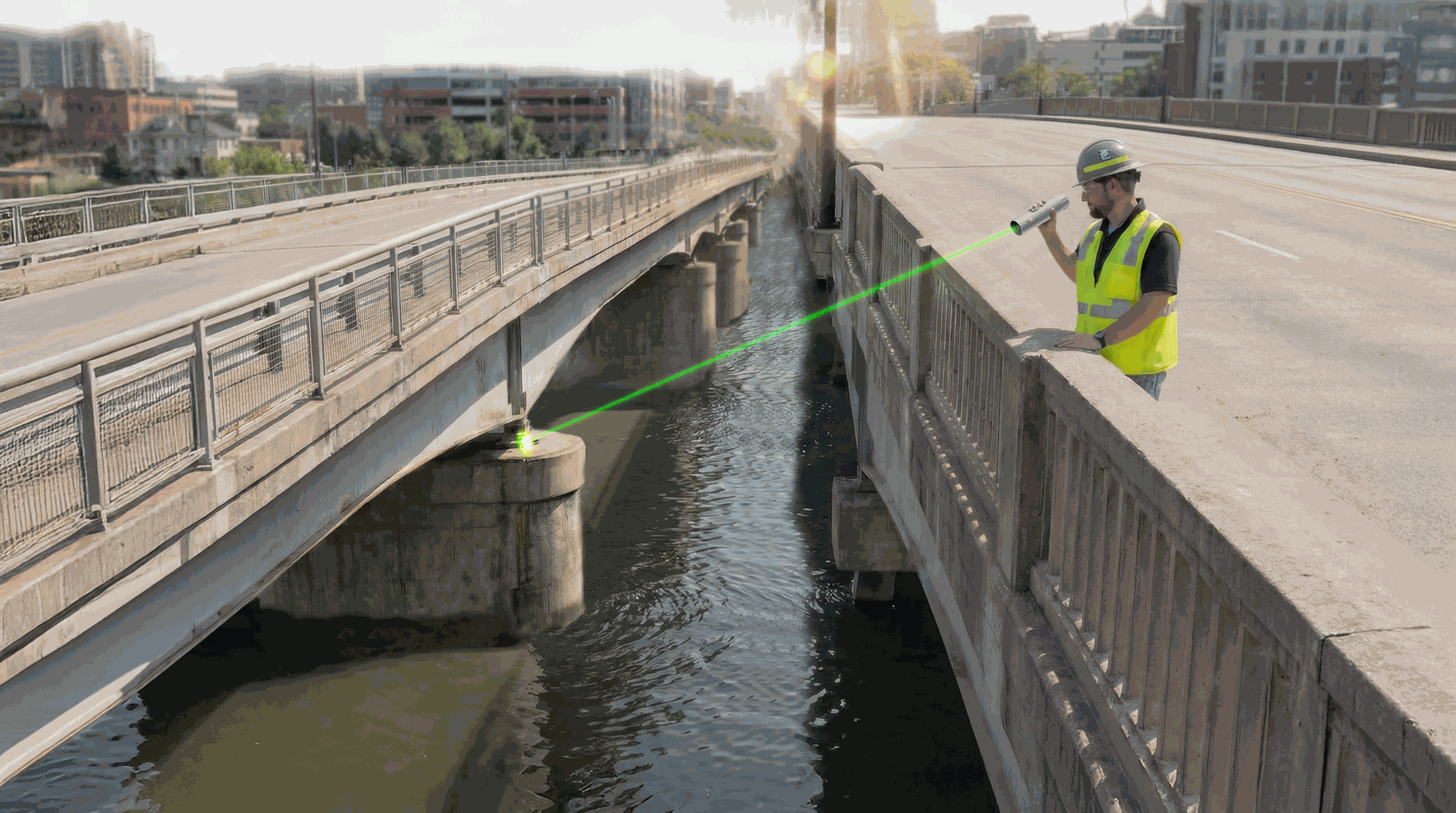

The V4e Pro is a 320g handheld RTK receiver aimed at the everyday reality of fieldwork: not every point you need to survey or stake out is somewhere you can safely stand. Its built-in laser rangefinder measures offset points at angles up to 60° with roughly 2.5-3.5cm 3D accuracy, so an operator can hit a corner, kerb line or hazardous point from a safe distance rather than walking to it. Multi-constellation RTK gives sub-centimetre-class horizontal accuracy, the case is drop-tested to 1.2m, and a single charge covers a full working day (12+ hours). It also pairs with a V4e LiDAR scanner as the "V4e Combo" to georeference indoor-to-outdoor scans. A practical, low-cost RTK option for topographic survey, road survey, utilities and general construction layout.
Technical specification
| RTK accuracy | H ≤0.8 cm+1ppm, V ≤1.5 cm+1ppm |
|---|---|
| Laser measurement | ≤3 cm @3m (θ≤30°); 3D error ≤2.5 cm (θ≤30°) / ≤3.5 cm (θ≤60°) |
| Runtime | ≥12 hours; ≤3 hours charge time |
|---|
| RTK initialisation | Cold start ≤30s, hot start ≤5s, RTK init <5s; USB 2.0 Type-C |
|---|
| Channels | 1408-channel multi-GNSS (BDS/GPS/GLONASS/Galileo/QZSS/SBAS) |
|---|
| Weight | 320 g |
|---|---|
| Dimensions | 182 x 53 x 53 mm; 1/4" thread mount |
| Drop rating | Drop-tested to 1.2 m |
| Operating temperature | -20°C to 60°C |
| IMU | Built-in IMU, max 30° tilt survey |
|---|
